Conventional Methods of Earthing

Conventional methods of earthing

Plate type Earthing:
Generally for plate type earthing normal Practice is to use Cast iron plate of size 600 mm x600 mm x12 mm. OR Galvanized ironGalvanized iron plate of size 600 mm x600 mm x6 mm. OR Copper plate of size 600 mm * 600 mm * 3.15 mm
Plate burred at the depth of 8 feet in the vertical position and GI strip of size 50 mmx6 mm bolted with the plate is brought up to the ground level.
These types of earth pit are generally filled with alternate layer of charcoal & salt up to 4 feet from the bottom of the pit.

Pipe type Earthing:
For Pipe type earthing normal practice is to use GI pipe [C-class] of 75 mm diameter, 10 feet long welded with 75 mm diameter GI flange having 6 numbers of holes for the connection of earth wires and inserted in ground by auger method.
These types of earth pit are generally filled with alternate layer of charcoal & salt or earth reactivation compound.


GI & COPPER Plate Type Earthing:

COMPONENTS:
Cast iron plate of size 600 mm x600 mm x12 mm OR
Galvanized iron plate of size 600 mm x600 mm x6 mm OR

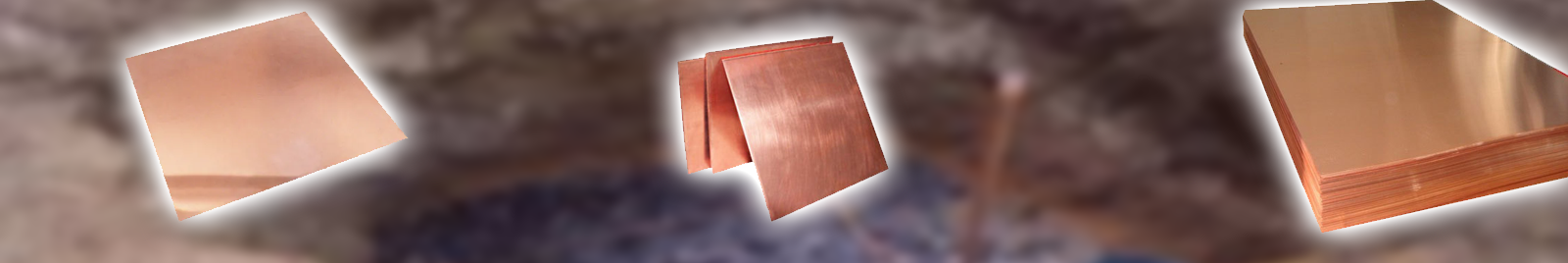

Copper plate of size 600 mm * 600 mm * 3.15 mm
Plate is burred at the depth of 8 feet in the vertical position and GI strip of size 50 mmx6 mm bolted with the plate is brought up to the ground level. These types of earth pits are generally filled with alternate layer of charcoal & salt up to 4 feet from the bottom of the pit.



Pipe Type Earthing:

GI pipe [C-class] of 75 mm diameter, 10 feet long is welded with 75 mm diameter GI flange having 6 numbers of holes for the connection of earth wires and is inserted in ground by auger method.
These types of earth pit are generally filled with alternate layer of charcoal & salt or earth reactivation compound.
